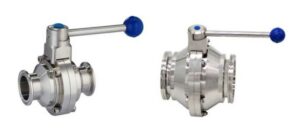

manual quick install butterfly ball valve

APPLICATIONS:

This type of valve is a kind of automatically or manually manipulation of butterfly type ball valve,because of it can be very good deal with viscous or medium with particulate,which is widely used in food,beverage,pharmaceutical and chemical industrial piping system,to regulate and control the medium flow in the system.

DESIGN FEATURES:

Free maintenance Portable and compact Small torquemoment
Valve body can be replaced in any connections, and the length will not change.
Handle can be installed on the side of the valve body, no matter of the flow direction.
It can match with pneumatic and electric actuators.
It can match with wash mouth.
Working temperature: EPDM(-40 ~ +120°C), PTFE(-40 ~ +130°C),
FPM ( -40~+180oC )
Pressure of work: 0?lObar
Material for the part contacted with media is 304/316L,other part is 304. Sealing material: EPDM, VMQ, FPM
Connection: clamp,weld,thread,flange
Size: 1″ -4W/DN25-100 Standards: 3A,DIN,SMS,IDF,RJT,BPE,ISO

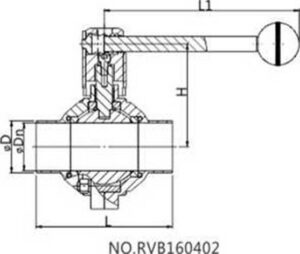

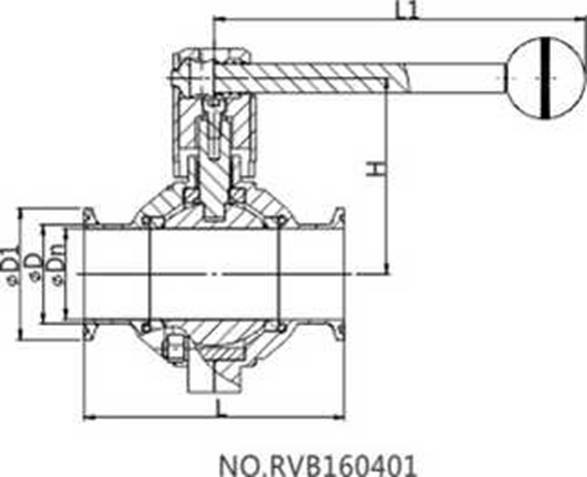

	DIN DIN MANUAL QUICK INSTALL/WELDED BUTTERFLY BALL VALVE SIZE ODn 0D OD1 L LI H □ KXK DN15 15 18 34 70 143 60 10×10 DN20 19 22 34 70 143 60 10×10 DN25 25 28 50.5 85 143 68 10×10 DN32 31 34 50.5 85 143 68 10×10 DN40 37 40 50.5 100 143 75 10×10 DN50 49 52 64 110 143 85 10×10 DN65 66 70 91 125 143 107 10×10 DN80 81 85 106 135 186 117 11X11 DN100 100 104 119 170 215 140 14×14

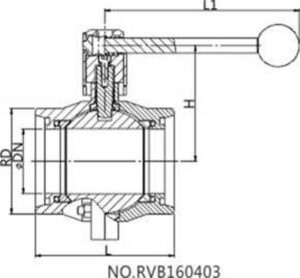

	DIN DIN MANUAL THREADED BUTTERFLY BALL VALVE SIZE ODN RD L LI H □KXK DN15 15 Rd34Xl/8 70 143 60 10×10 DN20 19 Rd44Xl/6 70 143 60 10×10 DN25 25 Rd52Xl/6 85 143 68 10×10 DN32 31 Rd58Xl/6 85 143 68 10×10 DN40 37 Rd65Xl/6 100 143 75 10×10 DN50 49 Rd78Xl/6 102 143 85 10×10 DN65 66 Rd95Xl/6 125 143 107 10×10 DN80 81 RdllOXl/4 135 186 117 11X11 DN100 100 Rdl30Xl/4 170 215 140 14×14

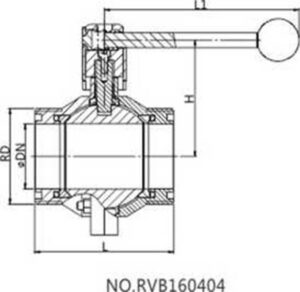

	DIN DIN MANUAL THREADED BUTTERFLY BALL VALVE SIZE ODN RD L LI H □KXK DN15 15 Rd34Xl/8 70 143 60 10×10 DN20 19 Rd44Xl/6 70 143 60 10×10 DN25 25 Rd52Xl/6 85 143 68 10×10 DN32 31 Rd58Xl/6 85 143 68 10×10 DN40 37 Rd65Xl/6 100 143 75 10×10 DN50 49 Rd78Xl/6 102 143 85 10×10 DN65 66 Rd95Xl/6 125 143 107 10×10 DN80 81 RdllOXl/4 135 186 117 11X11 DN100 100 Rdl30Xl/4 170 215 140 14×14
	DIN DIN MANUAL THREADED BUTTERFLY BALL VALVE SIZE ODN RD L LI H □KXK DN15 15 Rd34Xl/8 70 143 60 10×10 DN20 19 Rd44Xl/6 70 143 60 10×10 DN25 25 Rd52Xl/6 85 143 68 10×10 DN32 31 Rd58Xl/6 85 143 68 10×10 DN40 37 Rd65Xl/6 100 143 75 10×10 DN50 49 Rd78Xl/6 102 143 85 10×10 DN65 66 Rd95Xl/6 125 143 107 10×10 DN80 81 RdllOXl/4 135 186 117 11X11 DN100 100 Rdl30Xl/4 170 215 140 14×14
