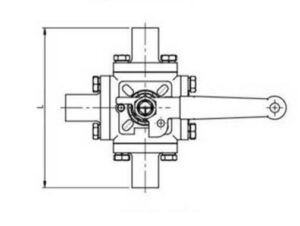

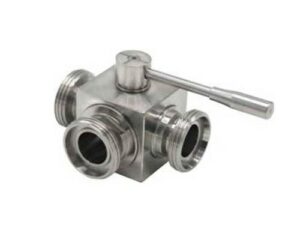

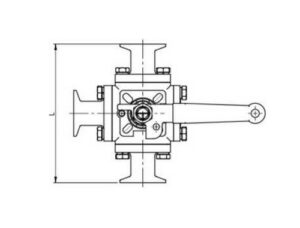

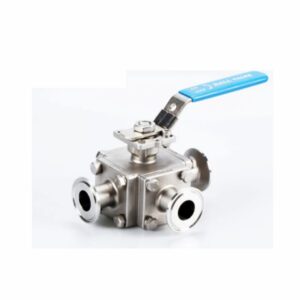

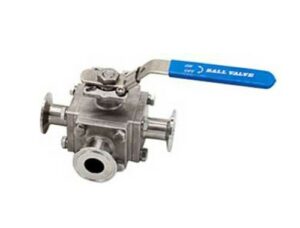

 | Threaded Three-way Full Bore Manual Ball Valve |  T Port |

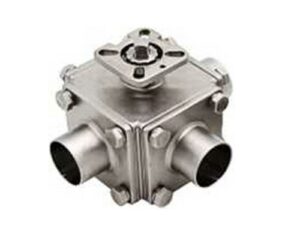

| uick- install/ welded three-way full bore manual ball valve |  L Port Ball Type |
| |
 |  |
| NO.RVB160801 | NO.RVB160802 |
3A

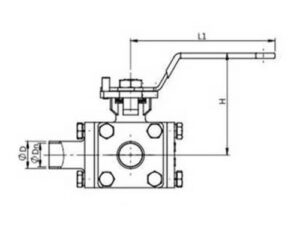

| SIZE | ODn | OD | 0D1 | L | LI | H |
| 1/2″ | 9.4 | 12.7 | 25.2 | 118 | 135 | 77 |
| 3/4″ | 15.8 | 19.1 | 25.2 | 127 | 135 | 78 |
| 1″ | 22.1 | 25.4 | 50.5 | 152 | 135 | 95 |
| 1.25″ | 28.5 | 31.8 | 50.5 | 175 | 181 | 113 |
| 1.5″ | 34.8 | 38.1 | 50.5 | 175 | 181 | 113 |
| 2″ | 47.5 | 50.8 | 64 | 201 | 181 | 121 |
| 2.5″ | 60.2 | 63.5 | 77.5 | 227 | 181 | 135 |
| 3″ | 72.9 | 76.2 | 91 | 262 | 336 | 140 |
| 4″ | 97.4 | 101.6 | 119 | 319 | 436 | 158 |
DIN
| SIZE | ODn | OD | OD1 | L | LI | H |
| DN15 | 15 | 18 | 34 | 118 | 135 | 77 |
| DN20 | 19 | 22 | 34 | 127 | 135 | 78 |
| DN25 | 25 | 28 | 50.5 | 152 | 135 | 95 |
| DN32 | 31 | 34 | 50.5 | 175 | 181 | 113 |
| DN40 | 37 | 40 | 50.5 | 175 | 181 | 113 |
| DN50 | 49 | 52 | 64 | 201 | 181 | 121 |
| DN65 | 66 | 70 | 91 | 227 | 181 | 135 |
| DN80 | 81 | 85 | 106 | 262 | 336 | 140 |
| DN100 | 100 | 104 | 119 | 319 | 436 | 158 |
