What Is The Difference Between A Plate Flange And A Flat Flange

Flanges are essential components used to connect pipes, valves, pumps, and other equipment in piping systems. Choosing the right type of flange is critical for ensuring a safe, leak-free, and durable connection. Two common flange types you might encounter are plate flanges and flat flanges. Understanding the difference between them helps in selecting the appropriate flange for your specific application.

What is a Plate Flange?

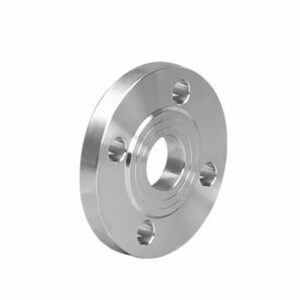

A plate flange is a type of flange that is typically flat with a raised face or a hub around the bolt holes. It is usually thicker and heavier, providing additional strength and support for higher pressure applications. The raised face helps improve sealing by concentrating pressure on the gasket.

Plate flanges are commonly used in industrial piping systems where durability and pressure resistance are important. They can be made from various materials such as stainless steel, carbon steel, or alloy steel depending on the application requirements.

What is a Flat Flange?

A flat flange, also known as a flat face flange, has a flat surface that mates directly with the flat face of another flange or fitting. Unlike plate flanges, flat flanges do not have a raised face or hub. This design is simpler and often used in low-pressure, low-temperature applications where alignment and ease of installation are priorities.

Flat flanges are frequently used in water systems, HVAC, and other light-duty piping systems. They require flat gaskets to create an effective seal.

Key Differences Between Plate Flange and Flat Flange

How to Choose Between Plate Flange and Flat Flange

Selecting the right flange depends on factors such as operating pressure, temperature, fluid type, and installation environment. Plate flanges are generally preferred for high-pressure or critical systems requiring strong, reliable seals. Flat flanges work well in systems with less demanding conditions where cost and ease of assembly are important.

Always refer to industry standards such as ANSI, ASME, or DIN when selecting flanges to ensure compatibility and safety.

Conclusion

In summary, the main difference between a plate flange and a flat flange lies in their design, sealing surface, and typical applications. Plate flanges offer better strength and sealing for high-pressure systems, while flat flanges provide a simple, cost-effective solution for low-pressure uses. Understanding these differences helps in making the best choice for your piping needs.
