The Ultimate Guide To Butt Welded Pipe Fittings

Introduction

Butt welded pipe fittings are a crucial component in many industrial piping systems. They’re used to change the direction of a pipe run, connect different pipe sizes, or terminate a pipeline. Unlike other fittings that may use threads or mechanical joints, butt welded fittings are designed to be welded directly to the pipe. This creates a permanent, one-piece system that’s incredibly strong and leak-proof. This guide from GENCEL will walk you through everything you need to know about these essential fittings, from their advantages and types to the materials and installation processes.

Key Advantages of Butt Weld Fittings

The reason engineers and designers consistently choose butt weld fittings for demanding applications is their superior performance.

• Superior Strength and Durability: The process of welding a fitting to a pipe creates a continuous, metallurgical bond. This results in a system that is as strong as, or even stronger than, the pipe itself. This strength is crucial for applications involving high pressure, temperature fluctuations, or vibrations.
• Leak-Proof Connections: A properly welded joint eliminates the risk of leaks, which is a common issue with threaded or mechanical connections. This makes them ideal for transporting hazardous or high-value fluids.
• Reduced Pressure Drop: Butt weld fittings have a smooth inner wall that provides an unobstructed flow path. This minimizes turbulence and pressure loss, which is essential for maintaining efficiency in a piping system.
• Versatility: These fittings are incredibly versatile. They can be manufactured from a wide range of materials to suit different applications and can be used in various industries, from chemical processing and oil and gas to food and beverage.

Types of Butt Welded Pipe Fittings

Butt weld fittings come in many shapes and sizes, each designed for a specific purpose. Understanding the different types is key to building an effective piping system.

• Elbows: Used to change the direction of a pipeline.

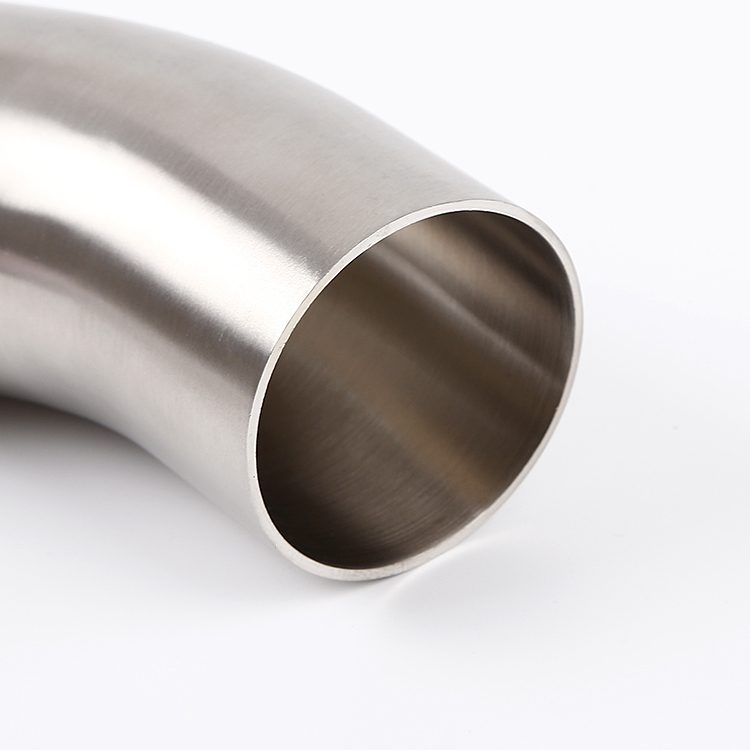

  • 90° Elbows: The most common type, available in both Long Radius (LR) and Short Radius (SR) versions. LR elbows have a larger bend, which reduces pressure drop, while SR elbows are used in tight spaces.
  • 45° Elbows: Used for less drastic changes in direction.
  • 180° Return Bends: Used to reverse the direction of flow, often found in heat exchangers.
• Reducers: Used to connect pipes of different diameters.
  • Concentric Reducers: Used when the centerline of both pipes must be aligned.

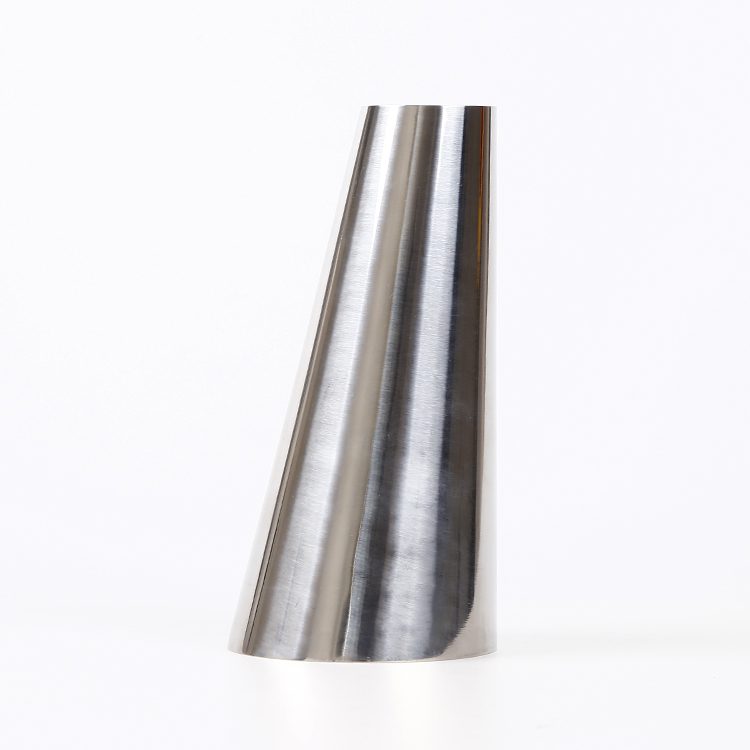

  • Eccentric Reducers: Used when one side of the pipe needs to be flush, for example, to prevent air pockets at the bottom of a horizontal line.
• Tees: Used to branch a line off at a 90-degree angle.
  • Equal Tee: All three ends have the same diameter.
  • Reducing Tee: The branch outlet has a smaller diameter than the run pipe.
• Caps: Used to seal or terminate the end of a pipe run.
• Stub Ends: Used with lap joint flanges. This combination allows for easy disassembly and alignment, making it perfect for systems that require frequent maintenance.

Materials and Standards

The material of the fitting must be compatible with the pipe material and the fluid being transported. Here are some common materials and the standards that govern their manufacture.

• Common Materials:
  • Carbon Steel: Such as A234 WPB, is a popular choice for general applications due to its strength and cost-effectiveness.
  • Stainless Steel: Grades like 304/304L and 316/316L offer excellent corrosion resistance, making them ideal for the food, pharmaceutical, and chemical industries.
  • Alloy Steel: Used for high-temperature and high-pressure applications where carbon and stainless steel may not suffice.
• Industry Standards: These standards ensure that fittings from different manufacturers are interchangeable and meet specific quality requirements.
  • ASME B16.9: The primary standard for wrought steel butt welding fittings. It covers dimensions, tolerances, and markings.
  • ASME B16.28: A specific standard for wrought steel buttwelding short radius elbows and returns.
  • ASTM Specifications: These detail the chemical and mechanical properties of the materials used to make the fittings.

Installation and Welding Process

While we won’t go into a full welding tutorial, understanding the basics of installation is important.

• Preparation: Before welding, the pipe ends and the fitting must be clean and free of any contaminants. Proper alignment is also crucial to ensure a strong and straight connection.
• Welding: The most common welding methods are Shielded Metal Arc Welding (SMAW), Gas Tungsten Arc Welding (GTAW or TIG), and Gas Metal Arc Welding (GMAW or MIG). The choice of method depends on the material and the specific application.
• Inspection: After welding, the joint is often inspected using non-destructive testing (NDT) methods like X-ray or ultrasonic testing to verify the weld’s integrity and ensure there are no cracks or voids.

Choosing the Right Butt Weld Fitting

Selecting the right fitting is a critical step in designing a reliable piping system. Here are the key factors to consider:

• Pressure and Temperature Requirements: The fitting’s material and schedule (wall thickness) must be able to withstand the maximum operating pressure and temperature.
• Fluid or Gas Type: The fitting material must be compatible with the substance flowing through the pipe to prevent corrosion or chemical reactions.
• Pipe Size and Schedule: The fitting’s dimensions and schedule must match the pipes you are connecting.
• Industry and Application: Different industries have specific regulations and requirements. For example, a fitting for a pharmaceutical plant will have different standards than one used on an oil rig.

Conclusion

Butt welded pipe fittings are a testament to the fact that simple design, when executed with precision, can lead to incredible strength and reliability. They are the backbone of countless industrial piping systems, providing permanent, leak-proof connections that withstand the toughest conditions.

At GENCEL, we understand the importance of quality and reliability. Our extensive range of butt weld fittings is manufactured to the highest standards, ensuring that your projects are built to last. Need help selecting the right fitting for your specific needs? Contact our expert team today!
