Guide To Buttweld Fittings Types

What Are Buttweld Fittings?

In the world of industrial piping, creating a reliable, leak-proof system is paramount. This is where buttweld fittings come in. These essential components are joined to pipes and other fittings by welding them directly at their ends, creating a permanent, seamless connection.

Unlike other connection methods that use flanges or threads, buttweld pipe fittings offer a superior solution for applications requiring high pressure, extreme temperatures, or corrosive materials. The full penetration weld ensures that the entire pipeline acts as one continuous piece, providing unmatched strength and integrity.

At GENCEL, we understand that selecting the right fitting is critical for the safety and efficiency of your project. This guide will walk you through the different types of buttweld fittings and their specific applications, helping you make an informed decision.

Types of Buttweld Fittings

Here is a detailed breakdown of the most common types of buttweld fittings you’ll encounter in industrial piping.

Butt Weld Elbows

Butt Weld Elbows are used to change the direction of a pipeline. They are a fundamental component for navigating around obstacles or altering the flow path. The key types include:

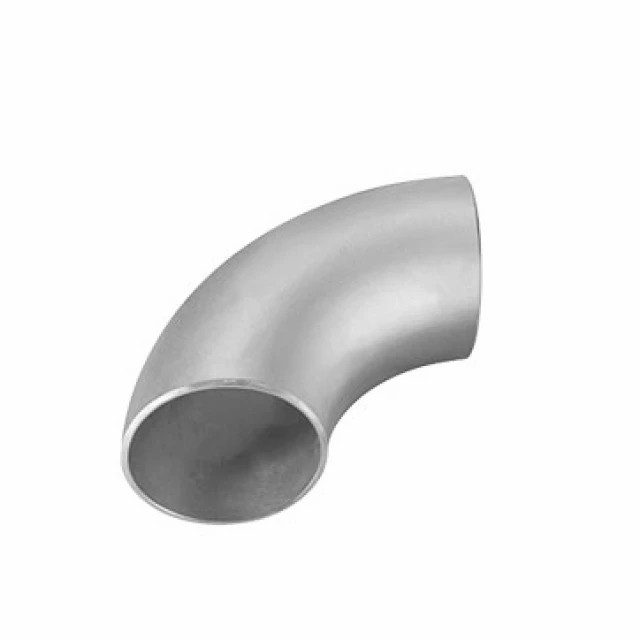

• 90° Elbows: The most common type, used for making a right-angle turn in the pipe.
• 45° Elbows: Used for making a gradual, 45-degree change in direction.
• 180° Elbows: Also known as a “return bend,” these are used to make a complete U-turn.
• Long Radius (LR) vs. Short Radius (SR): The radius of the curve determines the elbow type. Long radius elbows have a curve that is 1.5 times the nominal pipe size, while short radius elbows have a radius equal to the pipe size. LR elbows are preferred to minimize pressure drop and turbulence, while SR elbows are used in tight spaces.

Butt Weld Tees

A Butt Weld Tee is used to either combine or divide fluid flow within a pipeline. They have one inlet and two outlets, forming a “T” shape.

• Buttweld Equal Tee: All three outlets (the main run and the branch) have the same diameter. This is used when the flow is distributed equally or when a uniform pipe size is maintained.
• Buttweld Reducer Tee: The branch outlet has a smaller diameter than the main run. This allows for a controlled diversion of fluid to a smaller pipe, reducing the need for an additional reducer.

Butt Weld Reducers

Butt Weld Reducers are used to connect pipes of different diameters. They are crucial for creating a smooth transition, which helps to maintain flow efficiency and minimize turbulence.

• Concentric Reducer: Symmetrical and cone-shaped, with the centerlines of both ends aligned. These are typically used in vertical pipelines to prevent the accumulation of air or liquid.

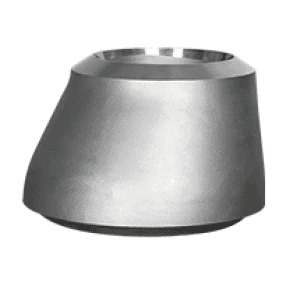

• Eccentric Reducer: Features a flat side, with the centerlines offset. This design is ideal for horizontal pipelines, as the flat side can be placed at the top or bottom to prevent the pooling of liquid or the formation of gas pockets.

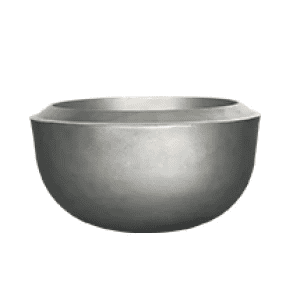

Butt Weld Cap

A Butt Weld Cap is used to seal the end of a pipe. This fitting provides a permanent, leak-proof termination for a pipeline. It can be used to close off a section for a final pipeline design or to cap a line for future expansion.

Butt Weld Stub Ends

Butt Weld Stub Ends are a unique type of fitting used to create a flanged connection without using a full weld neck flange. They are typically used in combination with a lap joint flange. The stub end is butt-welded to the pipe, and the loose backing flange slides over it. This allows for easy rotation and alignment of bolt holes, which can simplify installation. They are also a cost-effective solution, as the backing flange can be made from a lower-cost material.

Butt Weld Coupling

A Butt Weld Coupling is a short piece of pipe used to connect two pipes of the same diameter. While a butt-welded pipe-to-pipe connection is common, a coupling can be used to join two pipes, offering a robust and simple solution.

Butt Weld Nipple

A Butt Weld Nipple is a short, threaded, or plain-ended pipe that is used to extend a connection or to serve as a connection point for a valve or another fitting. While many nipples are threaded, buttweld nipples are used in high-integrity, all-welded systems.

Conclusion

Selecting the correct buttweld fitting is a critical step in building a safe and efficient piping system. Each type serves a specific purpose, and understanding their differences is key to a successful installation.

At GENCEL, we pride ourselves on providing a comprehensive range of high-quality buttweld pipe fittings manufactured to the highest industry standards. Our products ensure the integrity and longevity of your piping systems. If you have any questions or need assistance with your next project, our team of experts is ready to help you find the perfect solution.

Explore our full range of buttweld fittings and see the GENCEL difference for yourself.
