Difference Between Fluorine Lined Ball Valves And Ordinary Ball Valves

When choosing the right valve for your industrial needs, understanding the differences between fluorine lined ball valves and ordinary ball valves is crucial. This guide will help you determine which one is the best fit for your specific application, ensuring both safety and efficiency. We’ll explore the key distinctions, from materials to cost, and help you make an informed decision.

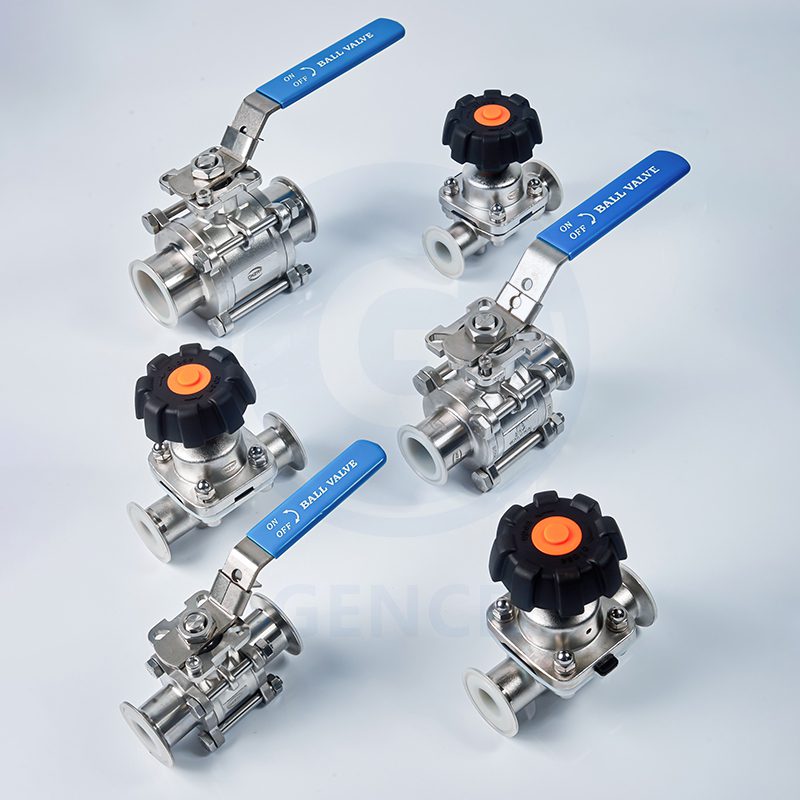

What Are Fluorine Lined Ball Valves?

Fluorine lined ball valves, also known as fluoropolymer lined ball valves, are a type of valve designed to handle highly corrosive media. They feature an internal lining made from fluoropolymers like PFA, FEP, ETFE or PTFE. This lining acts as a protective barrier, preventing the corrosive fluids from ever coming into contact with the metal body of the valve. This design makes them indispensable in chemical processing, pharmaceuticals, and other industries where aggressive chemicals are used.

What Are Ordinary Ball Valves?

Ordinary ball valves, on the other hand, are a versatile and common type of valve used to control the flow of various fluids. They typically consist of a metal body (such as carbon steel, stainless steel, or brass) and a rotating sphere with a hole through the center. While they excel in many applications involving water, oil, gas, and other non-corrosive media, their material composition makes them unsuitable for harsh chemical environments.

Key Differences Between Fluorine Lined and Ordinary Ball Valves

The difference between fluorine lined and ordinary ball valves is significant and impacts everything from performance to cost. Let’s break down the key areas of distinction.

Material

• Fluorine Lined Valves: The key material is the fluoropolymer lining (e.g., PFA, FEP, PTFE), which protects a typically cast iron or carbon steel body. This composite structure combines the strength of metal with the chemical resistance of the lining.
• Ordinary Ball Valves: These are usually made from a single material, such as stainless steel, brass, or carbon steel. The choice of material depends on the pressure, temperature, and media of the application, but they lack the internal protective layer.

Corrosion Resistance

• Fluorine Lined Valves: Their fluoropolymer lining provides exceptional resistance to almost all corrosive chemicals, including strong acids, alkalis, and solvents. This makes them the go-to choice for highly aggressive media.
• Ordinary Ball Valves: They have limited corrosion resistance. While stainless steel valves can handle some corrosive substances, they are not a match for the broad spectrum of chemicals that fluoropolymer linings can withstand.

Sealing Performance

Both types of valves provide excellent sealing, but the mechanism differs.

• Fluorine Lined Valves: The fluoropolymer lining often extends to the valve seats, creating a tight, bubble-free seal that prevents leakage of hazardous materials.
• Ordinary Ball Valves: Sealing is achieved through a machined ball and seats, which are also highly effective for most general applications.

Temperature

• Fluorine Lined Valves: The operating temperature range is limited by the fluoropolymer lining. While they can handle high temperatures, the maximum is lower than that of some metal valves, typically around 180°C (356°F).
• Ordinary Ball Valves: These can be designed to handle a much wider range of temperatures, with some specialized metal alloys capable of operating in extremely high-temperature environments.

Cost

• Fluorine Lined Valves: Due to the specialized materials and manufacturing process, fluorine lined ball valves are generally more expensive upfront.
• Ordinary Ball Valves: They are a more cost-effective solution for standard applications. The lower initial cost makes them a popular choice for non-corrosive fluid handling.

Maintenance

• Fluorine Lined Valves: With their superior corrosion resistance, these valves often require less maintenance and have a longer service life in harsh chemical environments.
• Ordinary Ball Valves: Maintenance frequency depends on the media and operating conditions. While generally low-maintenance, they may corrode and require replacement more often when exposed to aggressive substances.

Advantages of Choosing Fluorine Lined Ball Valves

The main advantage of choosing fluorine lined ball valves is their ability to reliably handle highly corrosive and toxic media. This protects your system from damage and prevents dangerous leaks, ensuring a safer working environment. They are a long-term, reliable investment that reduces the risk of costly downtime and equipment failure in chemically aggressive applications.

When to Use Ordinary Ball Valves Instead

You should use ordinary ball valves when the media being handled is non-corrosive and the operating temperature and pressure are within their limits. They are an ideal, cost-effective solution for applications involving water, oil, gas, and many other common industrial fluids. If you don’t need the specialized corrosion resistance of a lined valve, an ordinary one will perform just as well at a lower cost.

How to Select the Right Valve for Your Application

Selecting the right valve involves carefully considering the media, pressure, temperature, and flow requirements of your specific application.

1. Identify the Media: Is it corrosive, abrasive, or toxic? If so, a fluorine lined ball valve is the safest choice.
2. Evaluate Pressure and Temperature: Ensure the valve you choose can withstand the maximum pressure and temperature of your system.
3. Consider Cost: Balance the initial cost against the long-term benefits of durability and safety.
4. Check Certification and Standards: Always choose valves that meet industry standards for quality and safety.

GENCEL – Why Choose Us?

At GENCEL, we specialize in providing high-quality industrial valves that meet the most demanding requirements. Our extensive product line includes both robust ordinary ball valves and expertly manufactured fluoropolymer lined ball valves designed for maximum safety and efficiency. We are committed to helping you find the perfect solution for your specific needs, ensuring long-term reliability and performance.

FAQs

What chemicals are compatible with fluorine lined ball valves?

Fluorine lined ball valves are compatible with a very wide range of aggressive chemicals, including strong acids (like hydrochloric and sulfuric acid), strong bases (like sodium hydroxide), and various solvents.

Can fluorine lined ball valves handle high-pressure applications?

Yes, they are designed to handle high-pressure applications, though the exact pressure rating depends on the specific design and materials used.

Are ordinary ball valves suitable for water treatment plants?

Yes, ordinary ball valves are a common and effective choice for many applications in water treatment plants, where they control the flow of non-corrosive water.

How long do fluorine lined ball valves typically last?

With proper installation and in the right application, fluorine lined ball valves can last for many years, often outliving other valve types due to their excellent corrosion resistance.

What maintenance tips extend the lifespan of ball valves?

Regular inspection, proper lubrication of moving parts (if applicable), and ensuring the valve is used within its specified pressure and temperature ratings are key to extending its lifespan.

Conclusion

By understanding the difference between fluorine lined and ordinary ball valves, you are better equipped to protect your operations and choose a product that offers both superior performance and lasting value. If you have questions or need assistance, our experts at GENCEL are ready to help.
